OUR MACHINERY

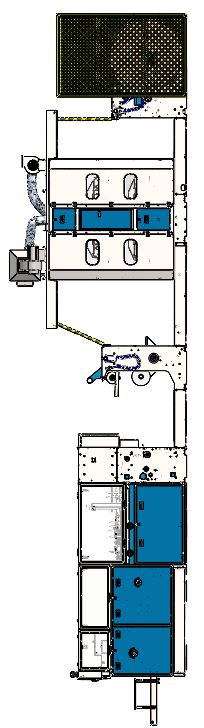

IRIS
Flat & Satchel paper bag machine perfore type
IRIS

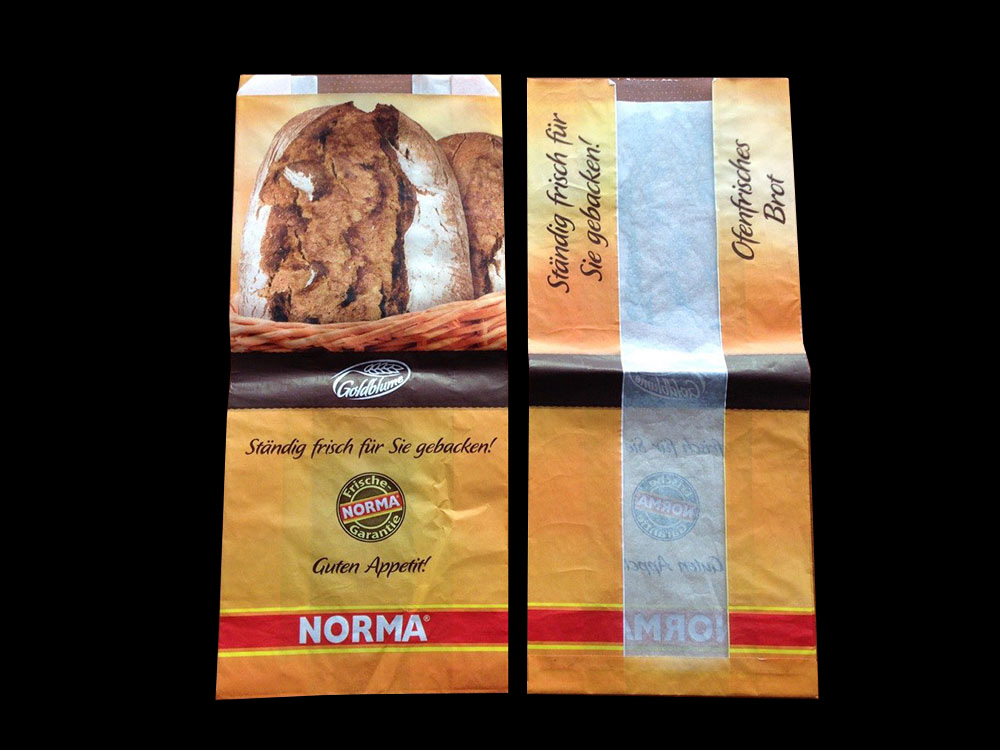

IRIS produces flat & satchel paper bags in various dimensions. Our focus is to provide you a machine that is easy and safe to operate & maintain.
Industry 4.0
We developed a Machine - Office two-way communication program where machine production information is transferred-displayed & processed.
Technical parameters
IRIS170
x 40mm - 170mm
y 140mm - 340mm › DOUBLE CUT
y 350mm - 550mm › SINGLE CUT
IRIS250
x 70mm - 250mm
y 190mm - 420mm › DOUBLE CUT
y 430mm - 620mm › SINGLE CUT
or
y 240mm - 420mm › DOUBLE CUT
y 430mm - 700mm › SINGLE CUT
IRIS350
x 80mm - 350mm
y 190mm - 420mm › DOUBLE CUT
y 430mm - 620mm › SINGLE CUT
or
y 240mm - 420mm › DOUBLE CUT
y 430mm - 700mm › SINGLE
Extra equipment
Window Station
System for the introduction of a transparent frame, along the paper bag, for the creation of a window.
Flexo Printer
Inline flexographic printer
SDP
Equipment for the creation of a double bag from two different paper qualities.

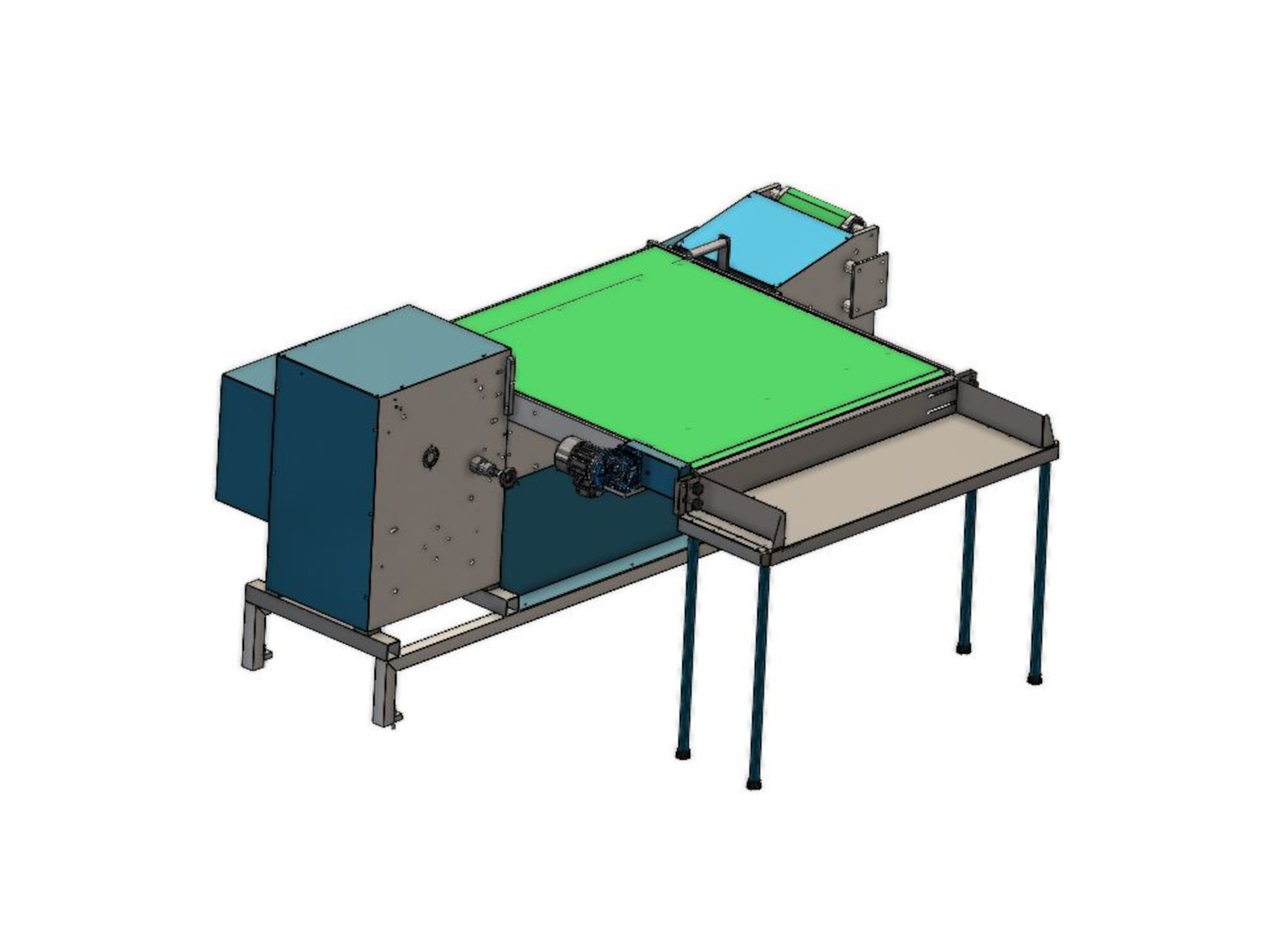

LPB
Equipment that allows the exit of the paper bag in horrizontal position in bundles.
Punching unit
System for the introduction of holes on the upper part of the bag.
Handle
System for the introduction of a handle in the form of a smile on the upper part of the bag.
Hot Melt System
Automatic adhesive device for setting hot glue along the paper, without spraying on the perforation.
Cold Glue System
Automatic adhesive device for spraying cold glue along the paper, with an analogue valve.
