OUR MACHINERY

CS

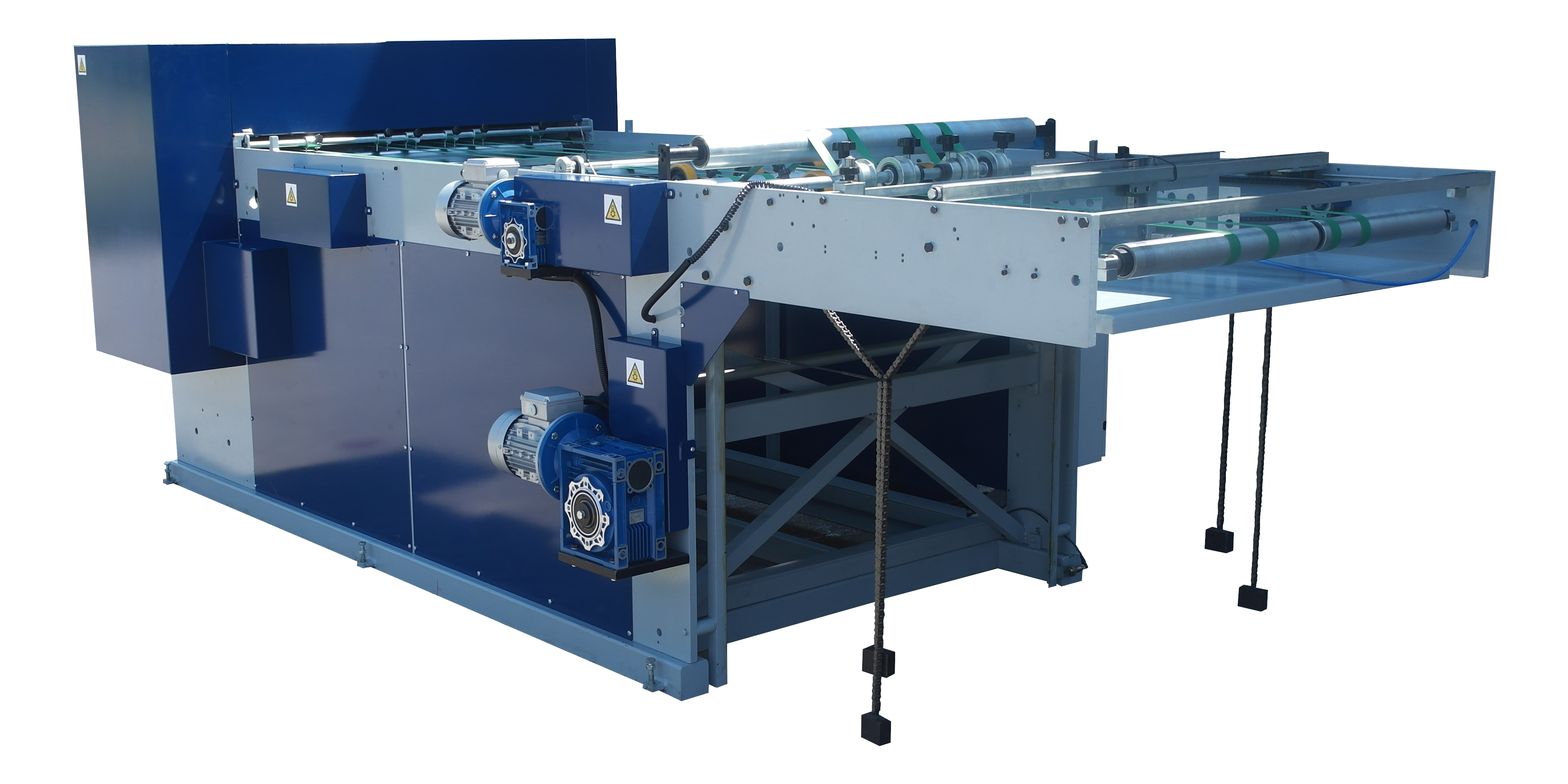

Reel to sheet cutting machine
General description
Automatic machine that cuts paper rolls into sheets of equal dimensions. Easy and safe to operate & maintain.

Technical parameters

CSB700

Width min: 300mm – max: 700mm

Length min: 350mm – max: 700mm

CSB70x100

Width min: 300mm – max: 700mm

Length min: 500mm – max: 1000mm

CSB100x70

Width min: 400mm – max: 1000mm

Length min: 350mm – max: 700mm

CSD1000

Width min: 400mm – max: 1000mm

Length min: 500mm – max: 1000mm

Options

Paper transfer

Via belts or with the aid of a drum for thinner paper.

Photocell

For paper cutting to a standard mark.

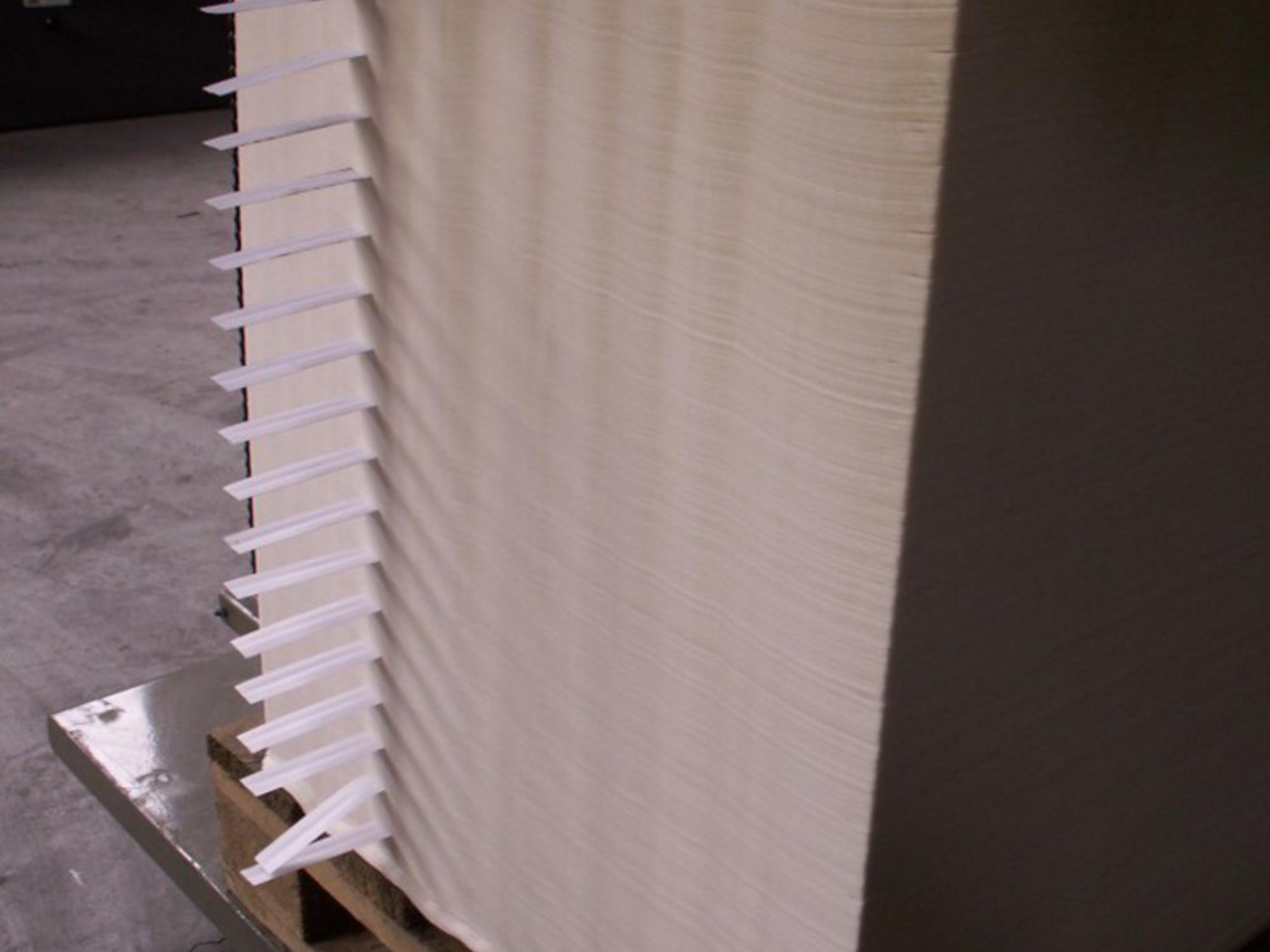

Counter

System that enters a small piece of paper among the sheets on a specified amount.

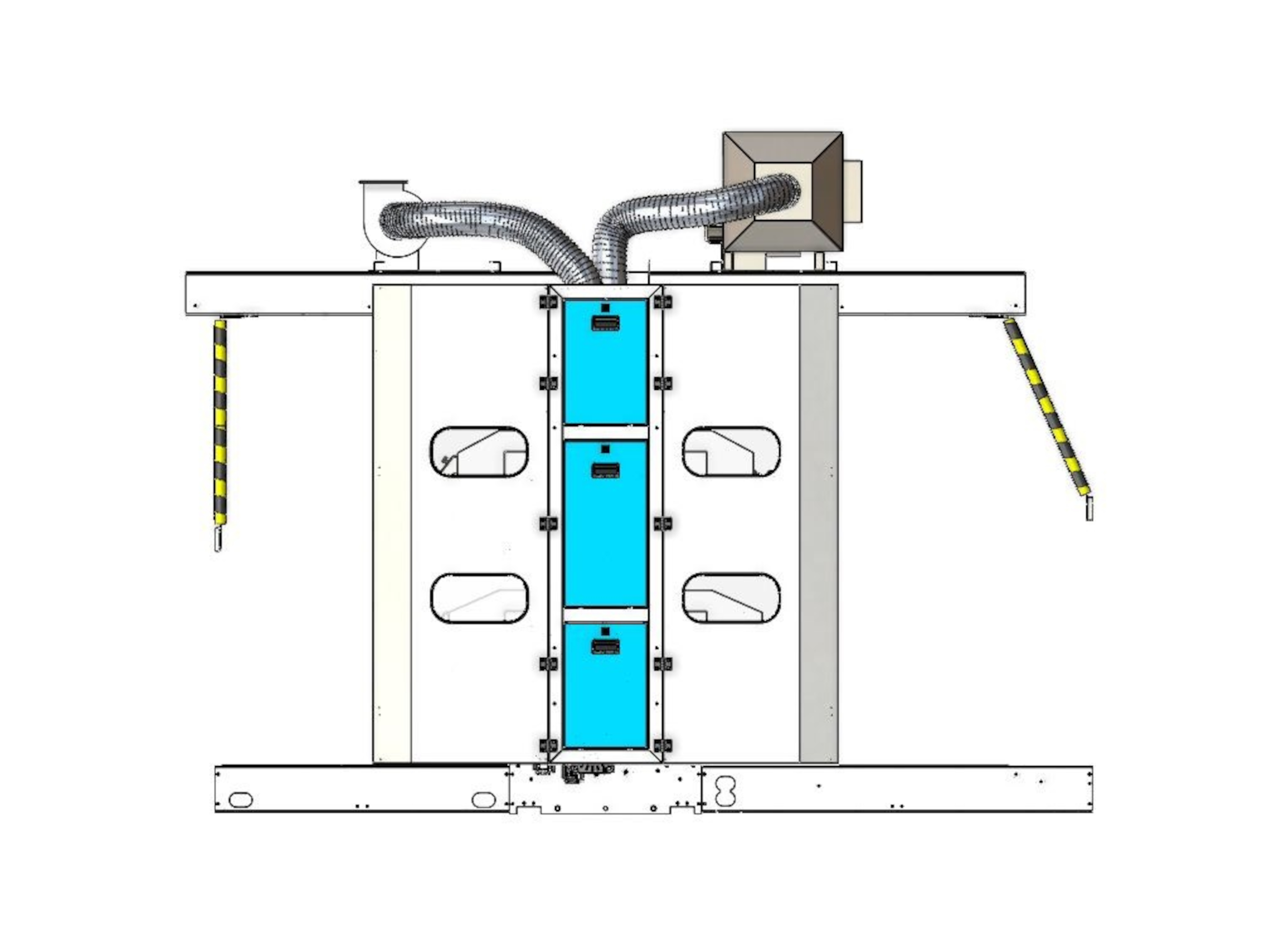

Inline Flexoprinter

Add a flexoprinter for simultaneously printing and cutting into sheets.

Input rolls

You can use 1 to 4 input paper rolls in order to maximise productivity.
